IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed

Name: IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed
Brand: SHAN CABLE
Price: 0.5 USD

China IEC Standard LV MV FRC Fire Retardant Cable XLPE Insulation LSZH Sheathed wholesale

Brand Name : SHAN CABLE

Model Number : CU/MICA/XLPE/LSOH FR

Certification : CE/KEMA/IEC

Place of Origin : CHINA

MOQ : 500m

Price : 0.5-50 USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5000 KM per month

Delivery Time : 15 working days

Packaging Details : Wooden Iron Drum

Conductor : Copper

Insulation : XLPE

Wrapping Tape : LSOH BendingTape

Sheath : LSOH

Rated Voltage : LV and MV

Cores No. : 1-5 cores

Corporation : shenghua group

Brand : Sh Cable

Contact Now

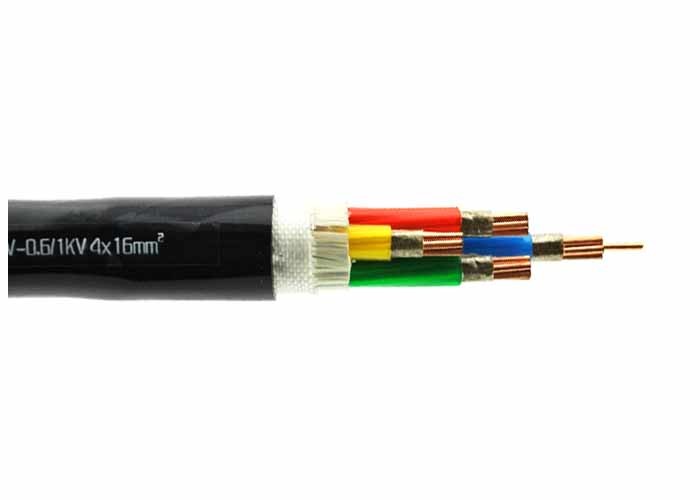

FRC Fire Resistant XLPE insulation LSOH sheath Power cable

Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1

CodeDesignation

YJ:XLPEinsulation Y: LSOH sheath

Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request

Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than 5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C
